AdminGuide:Service:AudioFile/en

Return to AdminGuide:Service

Description

The Audio File Management service includes the uploading and customization of audio files to be performed during the delivery of specific services.

Audio File Configuration

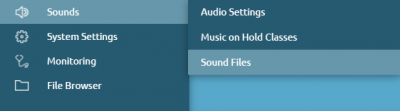

Following the path Sounds > Audio Files, we'll be on the page that lists the audio files present on the control unit and for each you can customize:

• Play:
  • Play in browser: the file is played directly in the browser
  • Download: the file is downloaded locally
  • Play on a device: you can choose which extension and which account to play it on. Pressing "Play" the selected extension will ring and you can listen to the audio file through the handset.
• Replay:
  • Load a new audio file: you can select it locally
  • Record a new audio file: you can record a new audio file using a telephone terminal. You can choose the extension and the account on which you will be called by the central unit that will provide you with instructions for the correct recording of the file
• Delete audio files we don't need anymore

The first three files we see are builtin, i.e. files made available to the control unit:

1. builtin/rec-start: warning file of the start of recording, in case of audio recording of phone calls is enabled
2. builtin/rec-stop: notifies the end of the recording of phone call audio
3. builtin/spu-start: audio message that notifies a call center operator (if the license is active) that a supervisor is starting to listen passively to that call

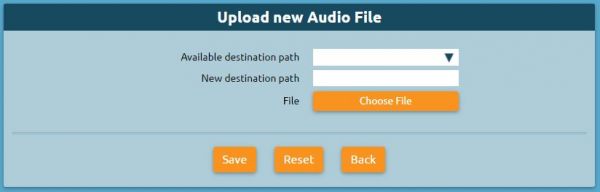

Upload new audio file

You can load a new audio file

• Available destination path: the path is a folder that allows you to identify file types more easily
• New destination path: you can insert the new path
• File: you can choose an audio file (.wav and .mp3)

The files will be available in the "Audio file list".

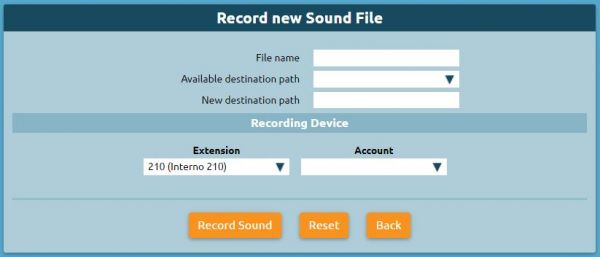

Record new sound file

• File name
• Available destination path
• New destination path
• Recording device: internal and account to be used for recording the audio file.

File size limit cannot exceed 5MB in size.

Music On Hold Classes Configuration

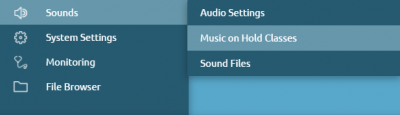

To configure the MOH classes we proceed by going to Sounds > Music on Hold Classes.

Hold music is the playback of audio files used for many services, including queues or during call transfers from one extension to another. The central unit has five pre-configured hold music classes available, but you can create an arbitrary number of new hold music classes.

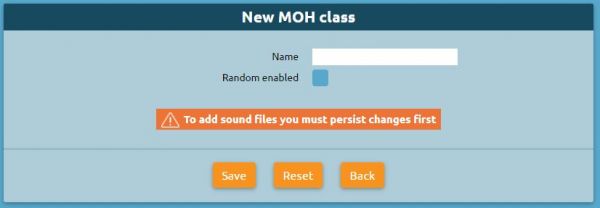

New MOH class

• Name
• Random Enabled: option to randomly play the audio files in the playlist, which would otherwise be played from top to bottom.

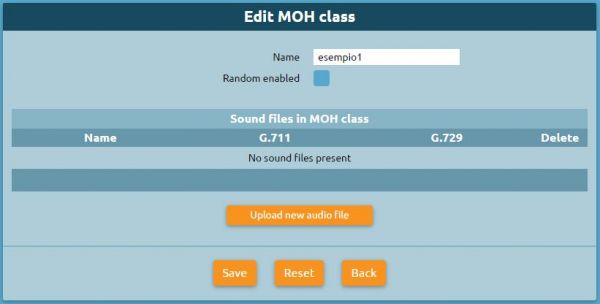

Edit MOH class

• Upload new audio files: you can load a series of audio files

Audio Settings Configuration

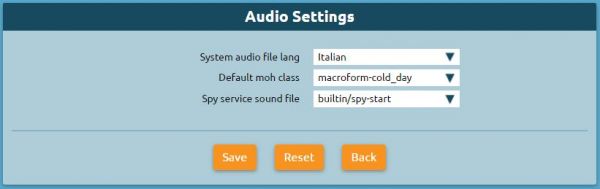

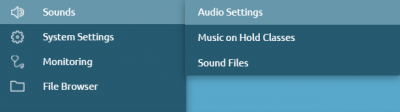

To configure the Audio settings we proceed by going to Sounds > Audio Settings.

• System Audio File Lang: you can change the language
• Default MOH Class: you can view the list of preloaded playlists or that we will add later
• Spy service Sound File: indicates the choice of the audio file to be used by default for the passive listening service

Custom Languages Configuration

The "Custom Languages" function is available for the Singletenant Admin and Multitenant PBX Admin.

To get to the service, press "Sounds > Custom Languages".

In this panel, variants can be defined from a front audio base in a given language.

In the customization tab you can enter:

• Name
• Basic language pack
• Variant

At the audio settings level, you can choose a custom language that inherits all the audio prompts of the base language you have chosen. Clicking on the list of the custom language created shows all the audio files that make up the language pack of the selected base language. You can change the speaker or alter the content of the files by uploading an audio file to replace the standard one. Anything that is not returned is inherited from the chosen primary language.

Load archive with audio files

You can upload a zipper containing the audio files, they are automatically reallocated over the previous ones.
